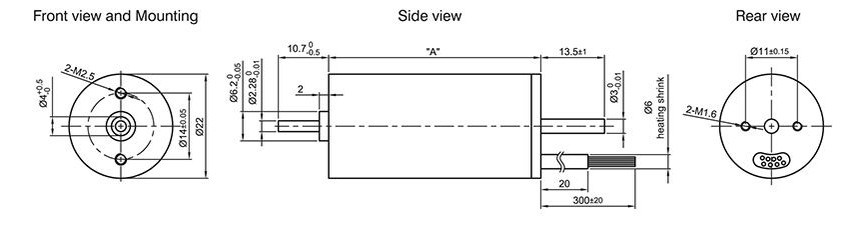

Brushless EC Servomotor-DB22
- Product Code：
- DB22
- Inventory：
- 0Item
- Price：
- Negotiable
- Added time：
- 2013-05-22 16:05:07
The miniature BLDC motors of the DB22 series are designed for high speeds and power outputs and reach a high service life due to the brushless construction. The integrated Hall sensors provide simple speed control. They can be simply turned into a powerful servomotor with the easy to assemble and favorably priced encoder. Planetary gears with identical construction enable higher torques and hence expand the power spectrum.
Resistance per Winding 23 Ohm
Inductance per winding 6.2 mH
Rotor inertia torque 0.66 gcm2
Torque Constant 3.02 Ncm/A
Weight 0.075 kg
Nominal Speed 4800 rpm
Peak Current 1.1 A
Peak torque 2.1 Ncm
